Bomba diésel de flujo mixto para remolque – Bomba de alto caudal para riego y transporte de agua | CHWY

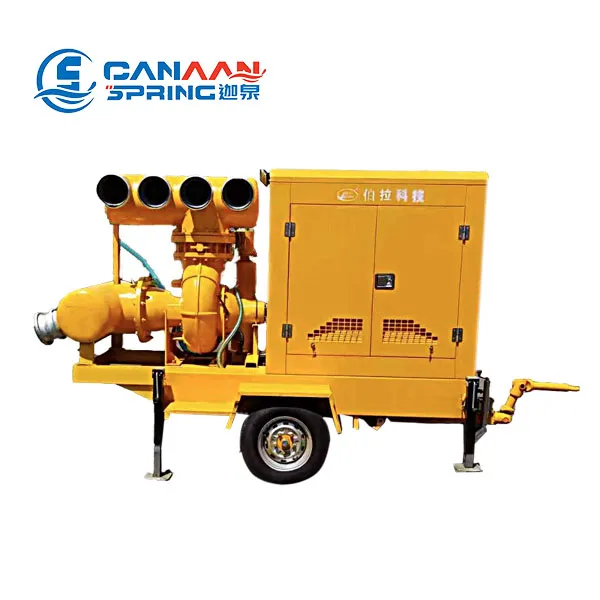

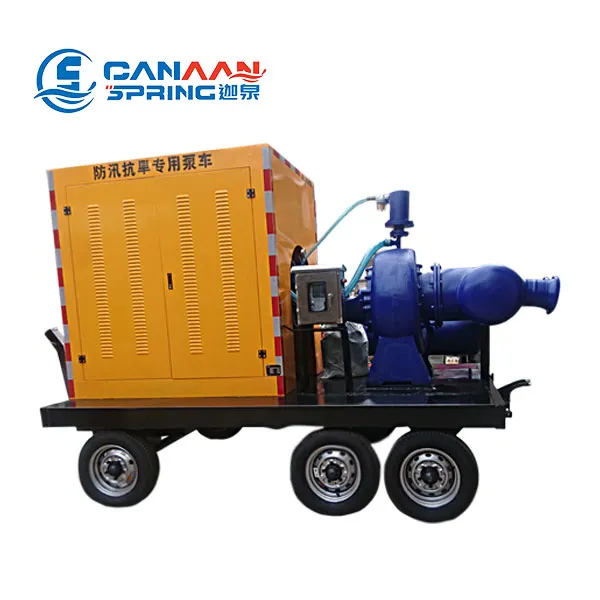

Diesel-driven mixed flow trailer pump, horizontal single-stage single-suction configuration, for high-volume water transfer at low to medium head. Designed for clean water or liquids with physical and chemical properties similar to water; maximum operating liquid temperature 50°C. Applications include agricultural irrigation and drainage, industrial water supply and drainage, and municipal water transfer.
Key Features & Advantages of Diesel Mixed Flow Trailer Pump – High-Volume Irrigation & Water Transfer Pump | CHWY
Flow Characteristics
- Flow capacity 100–5200 m³/h at head range 4–20 m, suited for large-volume, low-head water transfer
- Mixed flow impeller design provides higher flow output per unit of head compared to standard centrifugal pumps
- Horizontal, single-stage, single-suction configuration; counterclockwise rotation from inlet side
Aplicaciones
- Agricultural irrigation and field drainage
- Industrial water supply and process water circulation
- Temporary municipal water supply and seasonal reservoir supplementation
Others
- Medium: clean water or liquids with physical and chemical properties similar to water; not intended for liquids containing solids or abrasive particles
- Max. operating liquid temperature: 50°C
- Drive options: direct drive / variable speed drive
- Power source: electric motor or diesel engine
- Structure: compact, suitable for trailer-mounted installation
Technical Specifications
- Flow
- 100 – 5200 m³/h
- Head
- 4 – 20 m
- Pump diameter
- 150 – 650 mm
- Pump Type
- Horizontal, single-stage, single-suction mixed flow pump
- Drive Type
- Direct drive / Variable speed drive
- Power Source
- Electric motor / Diesel engine
- Medium
- Clean water or similar non-corrosive liquids
- Maximum Liquid Temperature
- ≤ 50°C
- Rotation Direction
- Counterclockwise from inlet side
Technical Documents
Frequently Asked Questions
The CHWY mixed flow pump is designed for high flow, low head water transfer. It is used for agricultural irrigation, industrial water supply, and temporary or seasonal municipal water supply. With flow capacities up to 5200 m³/h, it is suited for large volume clean water or similar liquid transfer tasks.
Yes. The CHWY series can be equipped with a diesel engine for trailer-mounted or mobile operation. This configuration is suitable for irrigation and water transfer in locations without access to grid electricity.
Compared with a standard centrifugal pump, the CHWY mixed flow pump delivers higher flow at lower head. It is suited for large volume water transfer applications such as irrigation and water diversion, rather than high-pressure applications.
